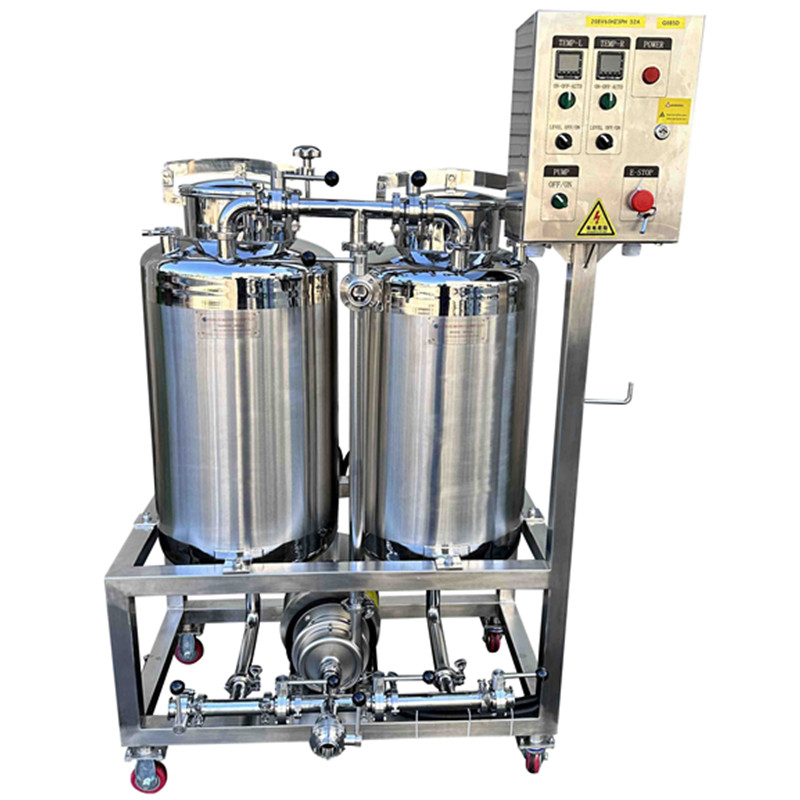

120L CIP Cleaning Cart

All sizes of CIP system are available,

Standard Sizes:75L,120L,150L,200L,300L,400L,500L,750L,1000L etc/each reservoir

The customized sizes are available.

The conductivity sensor will be quoted in addition.



Main steps:

Standard cleaning system heat the caustic in the caustic reservoir,

then pump the heated caustic into the brew tank to be cleaned,

then the caustic is recaptured in the caustic reservoir;

After the caustic cleaning is done,the pump will transfer sanitizer to rinse and recirculate,then back to sanitizer reservoir finally.



Default features:

Caustic reservoir

&heat element;

&1Xautomatic temp controller;

&float ball to prevent dry-firing heat element;



Sanitizer reservoir

&heat element;

&1Xautomatic temp controller;

&float ball to prevent dry-firing heat element;



We also have 3 reservoirs and 4 reservoirs available,pls contact us for details and pricings.



Centrifugal pump:

≤75L:1hp

≤150L:1.5hp

≤300L:2hp

≤500L:3hp

VFD(Variable Frequency Drive) as upgraded option,will be charged in addition;

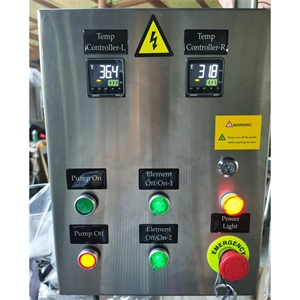

Control panel;

&SS304 built control box;

&Manual buttons and switches;

&Omron Brand automatic temp controller;

&High quality temp sensor/pt100 RTD

&High temp wire packages;

&Global brand electrical components;

&Timer and Buzzer as options;



Six options for heat element:

3KW/each-------------75L-100L version

5.5KW/each-----------120L-150L version

10KW/each------------200L version

15KW/each------------300L version

2X10KW/each---------500L version

2X15KW/each---------750L version

3X12KW/each--------1000L version

Affordable Price,Reliable Quality and Performance,Quick Response Aftersales Service.
For more information,pls contact us.
